Stainless Steel 2: 1 Ellipsoidal Dished End For Reactor Vessels

Brand Name : GLM

Model Number : CAP

Certification : ASME, PED and GB

Place of Origin : China

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000

Packaging Details : wooden box and iron shelf or as percustomers requirement

General : 2: 1 Ellipsoidal Dished End

Diameter : 3500mm

Material : stainless steel 316l

Head shape : Round

Color : Customer's Request

Reduction Ratio : about 10%

Thickness : 10mm

Forming method : Hot forming

Applications : SLURRY TANK

Applicable Standard : ASME

Contact Now

Stainless Steel 2: 1 Ellipsoidal Dished End For Reactor Vessels

Description:

2:1 Ellipsoidal dished end:

2:1 Ellipsoidal dished ends are deeper and stronger than the more popular torispherical dished heads. The greater depth results in the head being more difficult to form, and this makes them more expensive to manufacture. However, the cost is offset by a potential reduction in the specified thickness due to the dished end having greater overall strength and resistance to pressure.

Process type: cold pressing,hot pressing,cold spinning ,segment,etc

Specifications Of Stainless steel 2:1 elliptical head:

Brand Name:	GLM
Diameter:	89mm--10000mm
Thickness:	2mm--300mm
Reduction Ratio:	about 10%
Material:	Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method:	Hot forming,cold forming
Surface Treatment:	Sand Blasting,Pickling,oil,discaling
Inspection:	UT,RT,MT,PT,TOFD.
Applicable Standard:	ASME ,PED and GB
Certificate:	ISO9001,ISO45001,OHSAS18001
Applications:	Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc.
Package:	Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product:	Available

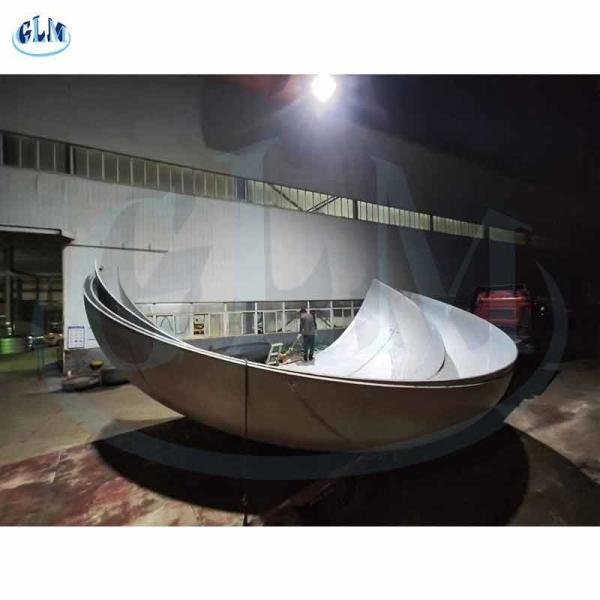

Products of asme ellipsoidal dished end

Stainless Steel 2: 1 Ellipsoidal Dished End For Reactor Vessels

Equipment of dished end:

Stainless Steel 2: 1 Ellipsoidal Dished End For Reactor Vessels
